Chad Harris · #1 11-18-2011, 07:36 PM

Coming off the catalytic converter is one of the O2 sensors. Coming off the sensor are 4 wires, 2 are black, 1 is blue and the other is white. They extend about 8 inches from the sensor where they go into a connector.

The problem is that the connector was destroyed when I ran over a semi-tire laying in the road and the wires on the opposite end of the connector are not the same colors.

Does anyone know how to color code these wires so i can re-connect them?

This ad is not displayed to registered members.
Register your free account today and become a member on ChryslerForum!

busboy4 · #2 11-18-2011, 08:13 PM

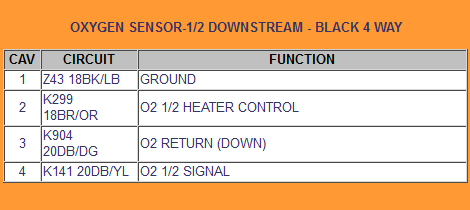

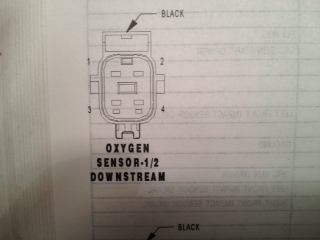

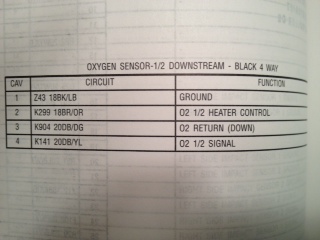

I hope these may help. The '06 PAC photo is a snip from this website and shows the wire colors and position on your car. The other two are shots from my '05 shop manual. You will see the wire colors are identical both years and the plug photo will show you the respective wire positions. I realize these only give you information from the plug to the sensor, so I am hoping you might have an idea as to the proper position (1-4) in the plug of the chassis wires.

Good luck with it.

Chad Harris · #3 11-19-2011, 07:19 PM

Unfortunately I need to know what's on the other side too. And for some reason, I cannot open any of those links. The website says I do not have privileges. So even if I could, I'd only be halfway home. Any idea about the other side.
