Help identifying wires on rear view mirror for 2012 T&C?
#1
Help identifying wires on rear view mirror for 2012 T&C?
I'm wanting to install a radar detector using the power from the auto dimming mirror on my 2012 Chrysler T&C. I can't find a manual for the wiring let alone find the color code for the wires so I was hoping to have some help identifying these wires and what each one does. Worst case I'll get a multimeter (since I forgot to bring mine when I moved).

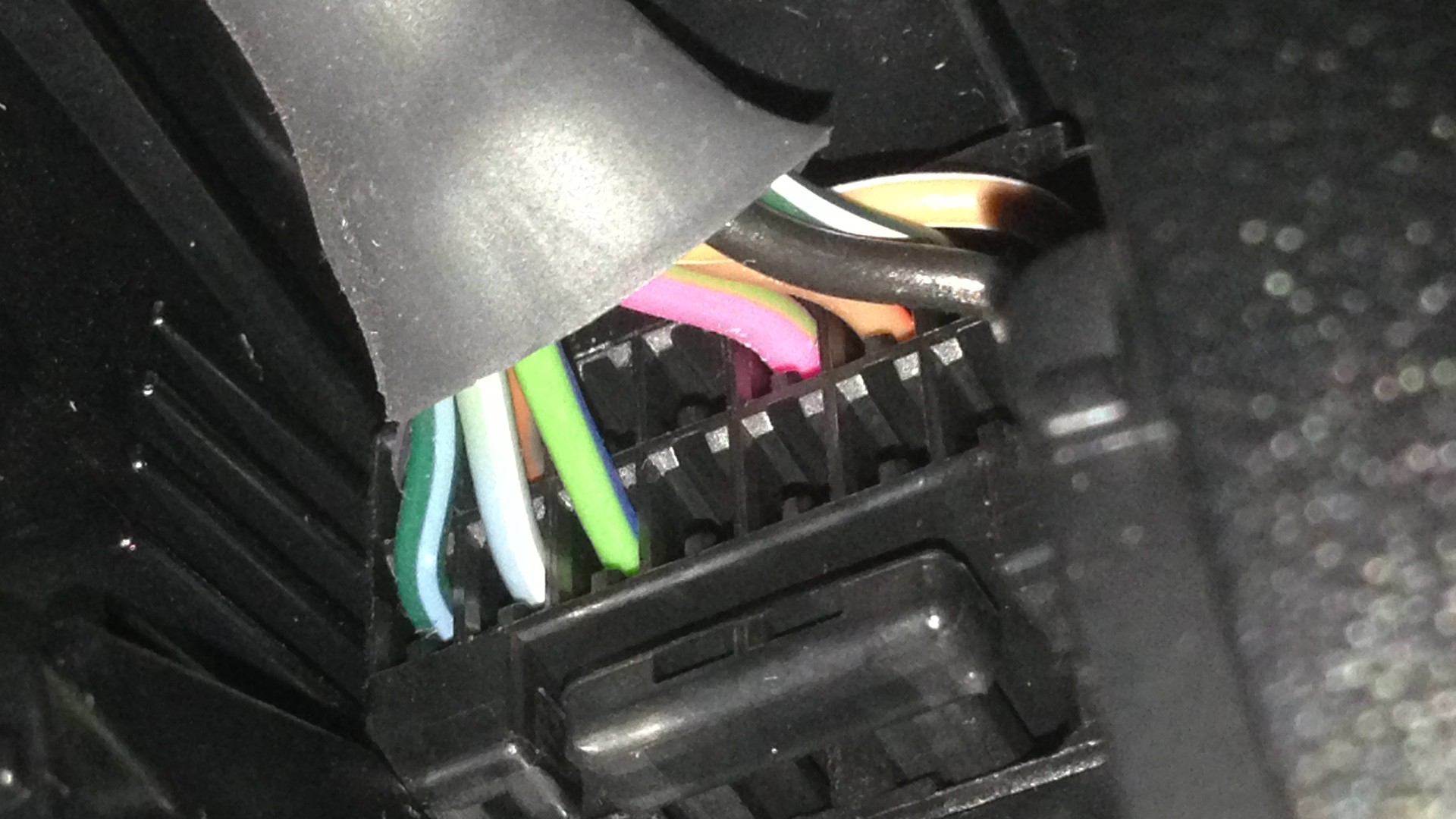

The wires are below (and a purple/black one along with an orange/brown? one behind the wrap):
Thanks for any help you guys can provide!
The wires are below (and a purple/black one along with an orange/brown? one behind the wrap):
Thanks for any help you guys can provide!
#2
Here are the functions associated with each wire:
Pin 1 DG/LB MICROPHONE 1 IN (+)
Pin 2 LB/WT MICROPHONE IN (-)
Pin 3 LG/DB MICROPHONE 2 IN (+)
Pin 4 -
Pin 5 -
Pin 6 -
Pin 7 -
Pin 8 BK GROUND
Pin 9 VT/BK BACKUP LAMP FEED
Pin 10 OR/GY SENSOR GROUND
Pin 11 -
Pin 12 -
Pin 13 PK/LG FUSED IGNITION RUN-START C
Pin 14 TN/OR AUTO DAY/NIGHT MIRROR (+)
Pin 15 DG/WT MICROPHONE FEED
Pin 16 TN/WT AUTO DAY/NIGHT MIRROR (-)
You can find that information by going here: Mopar Connection Repair Kit
On the "Search by Year and Platform" tab choose your "Year" and "Platform", click "Find Now" then in the "Filter these results:" box enter "mirror-inside".
George
Pin 1 DG/LB MICROPHONE 1 IN (+)
Pin 2 LB/WT MICROPHONE IN (-)
Pin 3 LG/DB MICROPHONE 2 IN (+)
Pin 4 -
Pin 5 -
Pin 6 -
Pin 7 -
Pin 8 BK GROUND
Pin 9 VT/BK BACKUP LAMP FEED
Pin 10 OR/GY SENSOR GROUND
Pin 11 -
Pin 12 -
Pin 13 PK/LG FUSED IGNITION RUN-START C
Pin 14 TN/OR AUTO DAY/NIGHT MIRROR (+)
Pin 15 DG/WT MICROPHONE FEED
Pin 16 TN/WT AUTO DAY/NIGHT MIRROR (-)
You can find that information by going here: Mopar Connection Repair Kit
On the "Search by Year and Platform" tab choose your "Year" and "Platform", click "Find Now" then in the "Filter these results:" box enter "mirror-inside".
George
